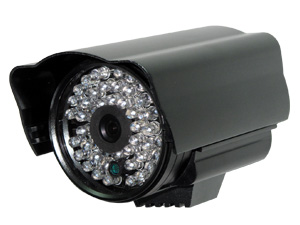

The MC-4803 is a camera with 1/3" SONY CCD sensor, SONY DSP chipset and IR LED which provides the best quality images. This series of camera comes with fine 480TVL resolution and outstanding colour and 0Lux when IR LED is turn on at night. The camera will shift to black $ White mode at night. it performs best picture quality in any light condition or environment.

Specifiation

Get Your Free Quotation
Model MC-3503
Power Source 12VDC (±10%)
Power Consumption Max. 3.5W
Image Pick-Up Device 1/3" Sony DoubleDensity Colour CCD
Total Pixels 795(H) x 596 (V)
Effective Pixels 752(H) x 582(V)
Scanning System 2:1 Interlace
625 Lines / 50 Fields / 25 Frames (PIXL)
Synchronization Internal
Scanning Frequency Horizontal : 15,625KHz / Vertical : 50Hz
Horizontal Resolution 480TVlines
Video Output 1.0Vp-p / 75?
(Video 0.7 Vp-p, Sync 0.3 Vp-p)
Lens 3.6mm (F1.2)
Angle Field of View 80°
S/N ratio (Y Signal) 50dB (AGC off, Weight on)
0.05 Lux @ F1.2 (Normal Color Mode, 50 IRE)
Min. Illumination 0 Lux @ F1.2 When IR on
Back Light Compensation BLC
Day & Night Color / B/W / Auto (Colour Kill)
Gain Control Auto
White Balance ATW
Electronic Shutter Speed Auto / Manual (1/50 ~ 1/120,000)
Operating Temperature -10% ~ +50°C
Operatiing Humidity 30% ~ 80% RH
Dimension 135mm x 72mm x 60mm
Weight 201g
